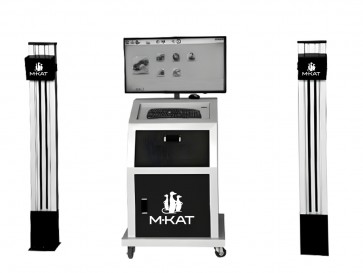

M-KAT 3D TRUCK & BUS ALIGNMENT

           Features:-

• M-Kat offers premium 3D Wheel Aligner Model
• UWA-128 Suitable for Trucks & Buses & LCV.
• Model Comes with 2 Camera & 4 Targets.
• Runout can be done by way of shifting the targets
• sequentially.
• Heavy duty Universal Clamps & Turning plates suitable for Light & Heavy commercial Vehicles.
• Movable trolley.
• Vehicle body Dimension measurement.
• Online Vehicle data updation & Online Service Support



            Specification:-

• Measuring parameter	Range	Accuracy
  Toe in ( Front / Rear)	+/-15’ 00”	+/-00’ 02”
  Total Toe	+/_40’ 00”	+/-00’ 04”
  Set back Angle	+/- 25mm	+/- 2.0mm
  Camber ( Front / Rear )	+/- 15’00”	+/-15’ 00”
  Castor / King Pin angle /SAI	+/- 25’00”	+/-00’ 05”
  Thurst Angle	+/-10’00’	+/-00’ 05”
  Operating System	Windows 10
  Operating Voltage	220V/ AC/ 50-HZ
  Rim Diameter	12” TO 24”
